High-Voltage Skid

Dimensions

13'x45'

Power

69kV & 13.8kV

Highlights

Electric Utility Skid

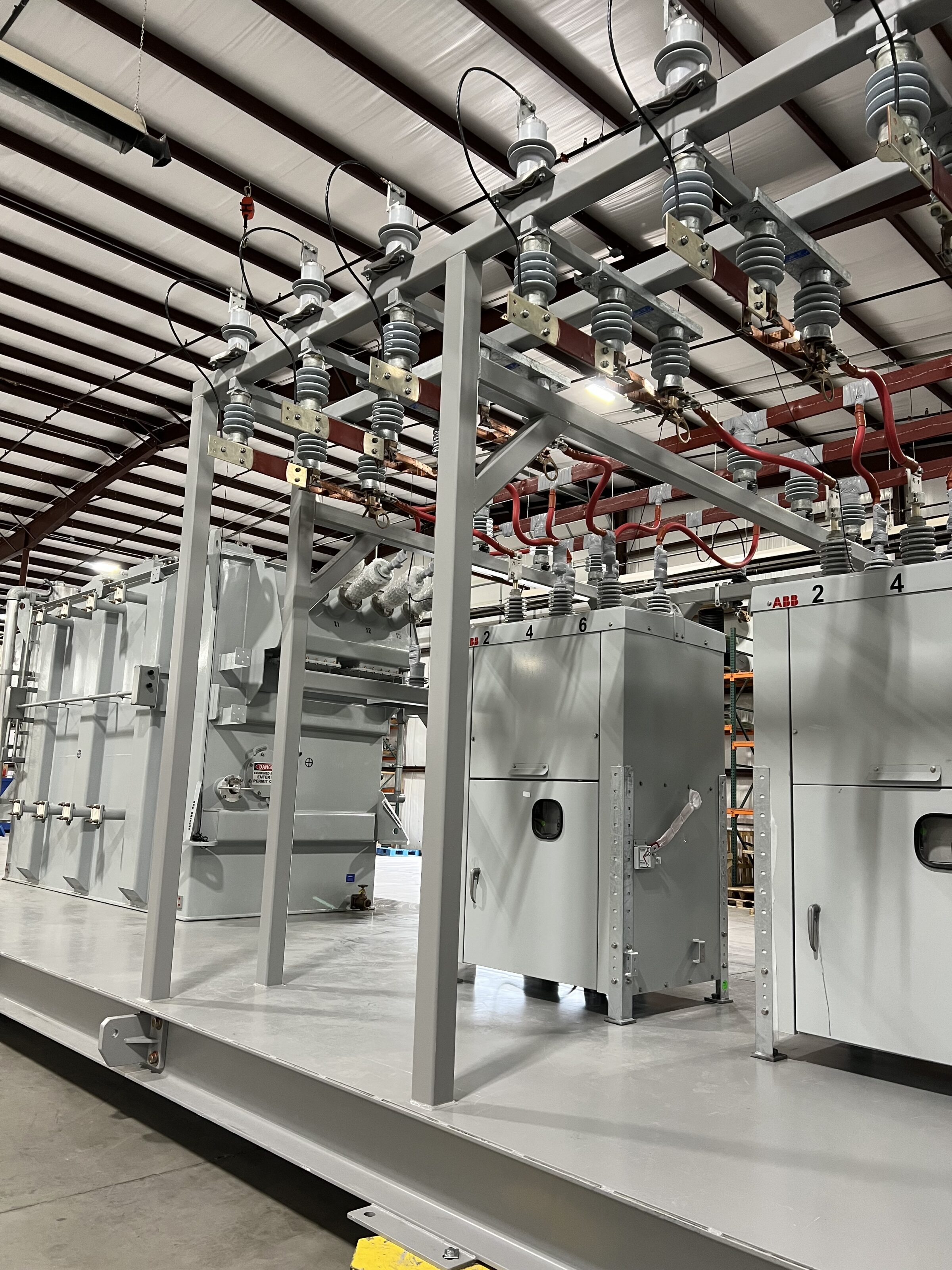

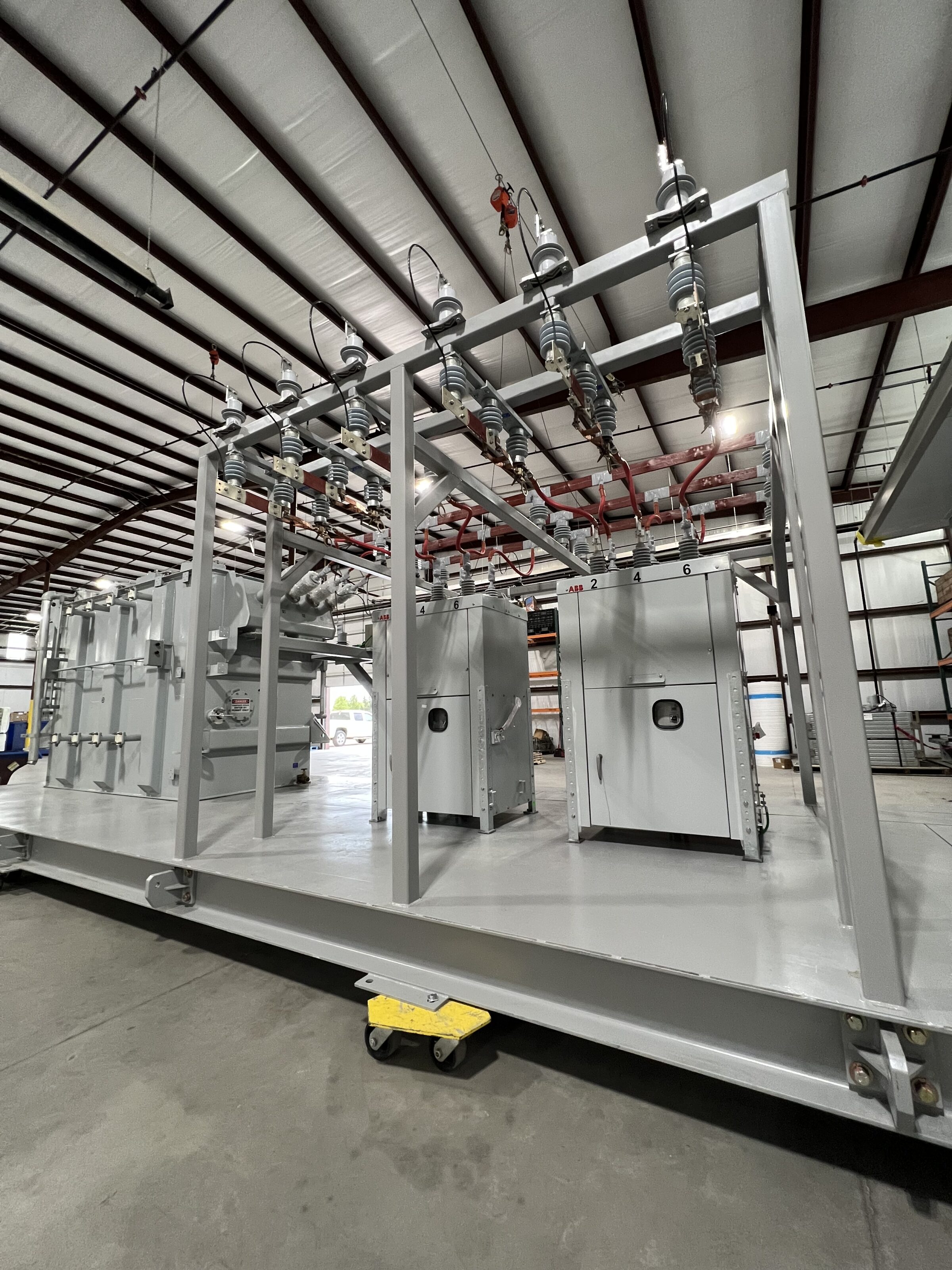

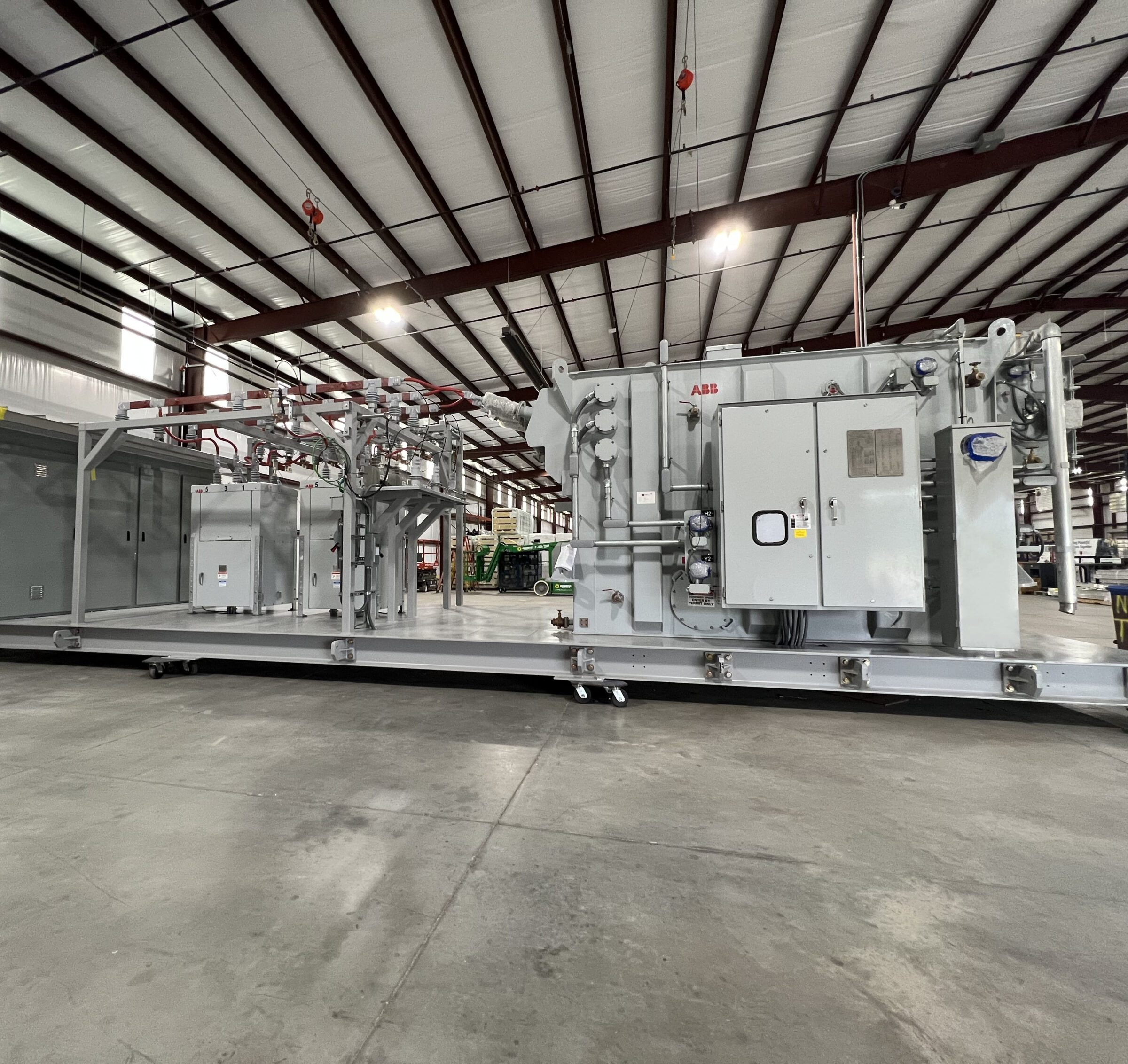

This skid combines a 69kV, 3MVA transformer from Hitachi Energy with 13.8kV switchgear to provide rapidly deployed utility scale power for standard use or disaster recovery. The Electric Utility Skid consisted of a 8.4 MVA Transformer that fed 12.5k overhead Buss Bars. The OH Buss Bars fed (2) 15kv Rmag Switches. There was also a Transclosure which housed all the controls.
